CH-320 Drainage Pump for Air Conditioner
Suitable for small tonnage air-conditioning (20000BTU / 5.8KW)
Model :
CH-320
1. Beautiful appearance, simple installation and construction.
2. Using AC motor, the motor has powerful drainage, quiet operation and long service life.
3. Float switch control, good induction and sensitivity.
4. Motor temperature protection measures, safer to use.
5. The reverse water valve design effectively prevents water backflow.
2. Using AC motor, the motor has powerful drainage, quiet operation and long service life.
3. Float switch control, good induction and sensitivity.
4. Motor temperature protection measures, safer to use.
5. The reverse water valve design effectively prevents water backflow.
CH-320 Specifications
|
Model |
CH-320 |
|
Voltage and Frequency |
220V/60HZ |
|
Current |
0.15A |
|
Power |
17W |
|
Drainage Tube |
2分 (4.5*7.1∮) |
|
Water Capacity |
290 ± 10cc |
| Weight | 1.2KG |
|
Dimension(W×D×H) |
180×100×131mm |
|
Max Pumping Height |
2M |
|
Applicable Cooling Capacity |
20000BTU / 5.8KW |
Water Discharge Reference Table
|
Pumping Height |
F low Rate （L) |
| 4.0M |
|
| 3.5M |
|
| 3.0M |
|
| 2.5M | (2.1M=0) |
| 2.0M | 0.3 |
| 1.5M | 0.6 |
| 1.0M | 0.9 |
| 0.5M | 1.3 |
| 0M | 2.5 |
This data is the maximum vertical capacity without temperature rise. If there are horizontal or temperature rise considerations, please reduce the height to reserve sufficient capacity.
1. Effectively prevent biogas from penetrating the drainage pipes and eroding the air conditioner.

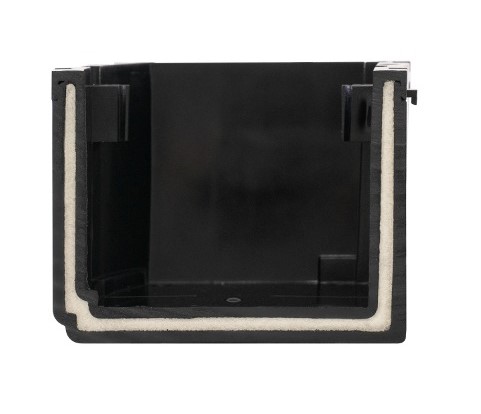

2. Use the best thermal insulation material to effectively isolate the water storage box from condensation and dripping due to the temperature difference between inside and outside.
3. Use the air release valve correctly to effectively eliminate the siphon sound caused by the height difference of the water pipe.
4. 100% made locally in Taiwan, quality guaranteed.
